Suspended Substrate Filter 1~18GHz

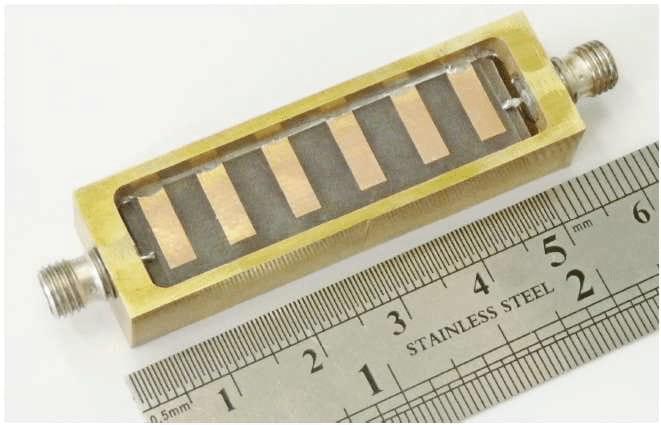

Suspended Substrate Filter

SZ series

Suspended Substrate Diplexer

Frequency rage: 1~18GMHz

Features

Specification

Edit

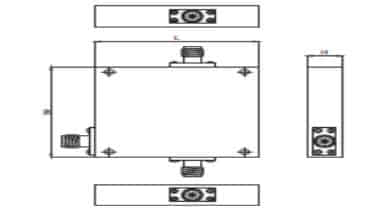

Model	5dB Coss-freq （GHz）	Freq Range（GHz）	IL（dB）	VSWR	Power Handling (W)	Shape Factor 3dB-50dB	Dimension(mm)
							L	W	H
SZ-2000/5-O/O	2	DC-1.9 2.1-4	1	≤2:1	15	1.2:1	52	44	10
SZ-4000/5-O/O	4	DC-3.8 4.2 -8	1	≤2:1	15	1.2:1	65	45	10
SZ-6000/5-O/O	6	DC-5.6 6.4-12	1	≤2:1	15	1.2:1	45	45	10
SZ-8000/5-O/O	8	DC-7.4 8.6 -12	1	≤2:1	15	1.2:1	37	28	10
SZ-12000/5-O/O	12	DC-12 12-18	1	≤2:1	15	1.2:1	32	27	10

Note: Only typical products are listed on this table，custom attenuation available with operating temperature

range -55~+85℃

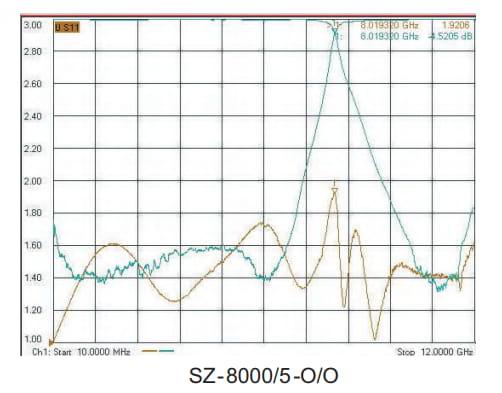

Typical Curve
