Chip Resistors

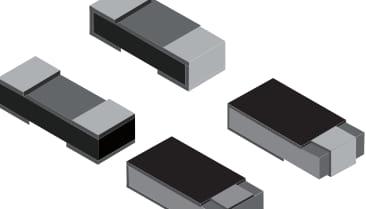

RIG31/RFG-Chip Resistors

General Specifications

Power): 1~100Watts
Standard Resistance): 100 or 50 Ohm
Resistance Tolerance): ±1%、±2%、±5%(default)
Temperature Coefficient): ≤±300PPM/°C //≤±250PPM/°C
Temperature Range : -55°C~125°C/-55°C~150°C
Default Substrate Material): BeO
RoHS compliant
We can provide the customized product according to the customer's requirement

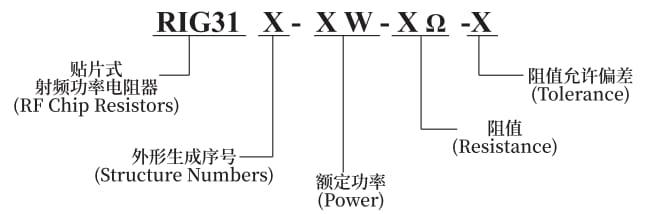

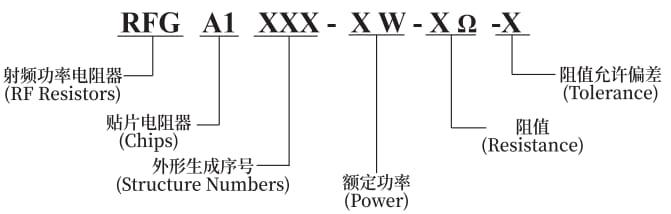

Order Information

Product Reference

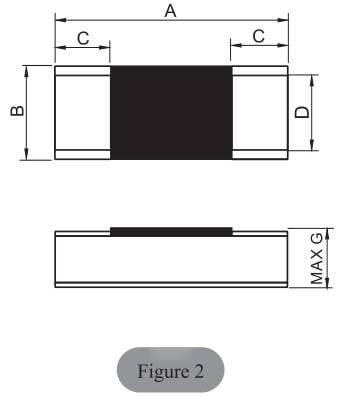

Power(W)	Capacitance(≤pF)	Model	Figure	Dimensions(mm)
Power(W)	Capacitance(≤pF)	Model	Figure	A±0.2	B±0.2	C	D	G(max)
1W	N/A	RIG31	1	2.2	1	0.5	0.5	0.65
2W	N/A	RIG31	1	2.2	1	0.5	0.5	0.65
2W	N/A	RIG311	1	3.2	1	0.6	1	0.95
2W	N/A	RIG312	1	3.2	1	0.6	1	0.65
5W	N/A	RIG31	1	5.4	2	1.1	1.5	1.5
10W	N/A	RIG31	1	5.4	2	1.1	1.5	1.5
10W	N/A	RIG315	1	6.4	4	1.1	1.6	1.5
15W	N/A	RIG31	1	5.4	2.5	1.1	1.5	1.5
20W	N/A	RIG31	1	9.4	6	2	2.7	1.5

Power(W)	Capacitance(≤pF)	Model	Figure	Dimensions(mm)
Power(W)	Capacitance(≤pF)	Model	Figure	A±0.2	B±0.2	C	D	G(max)
2	N/A	RFGA1R04	1	1.7	0.9	0.2	0.5	0.6
2	N/A	RFGA1R01	1	2.2	1	0.5	0.5	0.65
2	N/A	RFGA1R02	1	3.2	1	0.6	1	0.65
10	N/A	RFGA1R01	1	5.4	2	1.4	1.5	1.5
30	0.5	RFGA1R01	2	4	4	0.8	1.3	2.2
30	1	RFGA1R02	2	5	2.5	0.8	2.3	1.2
