RIG31/RFG-Chip Terminations
RIG31/RFG-Chip Terminations
General Specifications
Power: 1~100Watts Standard Resistance: 100 or 50 Ohm Resistance Tolerance: ±1%、±2%、±5%(default) Temperature Coefficient: ≤±300PPM/°C //≤±250PPM/°C Temperature Range : -55°C~125°C/-55°C~150°C Default Substrate Material: BeO RoHS compliant We can provide the customized product according to the customer's requirement
|  |
Order Information
Product Reference
| Power(W) | Frequency(GHz) | (VSWR≤) | Model | Figure | Dimensions(mm) |
| A±0.2 | B±0.2 | C | D | E | G(max) |

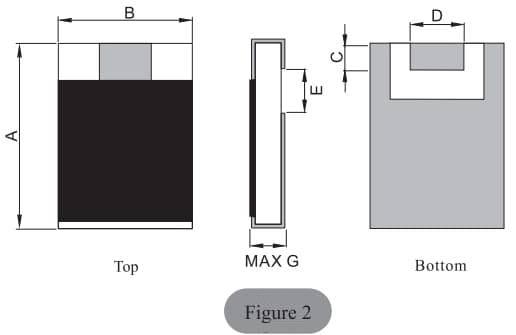

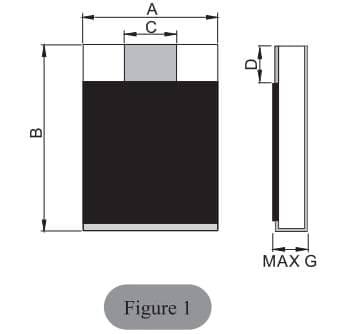

| 10 | DC-12 | 1.3 | RFGA1T02 | 1 | 5 | 2.5 | 1 | 0.6 | N/A | 0.9 |
| 10 | DC-13 | 1.3 | RFGA1T05 | 2 | 3 | 2 | 0.6 | 0.6 | 0.6 | 0.5 |
| 20 | DC-6 | 1.2 | RFGA1T01 | 1 | 5 | 2.5 | 1 | 0.6 | N/A | 1.2 |
| 20 | DC-5 | 1.2 | RFGA1T02 | 2 | 5 | 2.5 | 0.5 | 1 | 0.8 | 1.1 |
| 60 | DC-9 | 1.3 | RFGA1T01 | 2 | 6.4 | 6.4 | 1 | 1.2 | 1.2 | 1.4 |
| 100 | DC-3 | 1.2 | RFGA1T01 | 2 | 6 | 9 | 1 | 1 | 1.2 | 1.4 |
| 100 | DC-6 | 1.2 | RFGA1T02 | 2 | 6 | 9 | 1 | 1 | 1.2 | 1.9
|
