Brand: ATR
Origin:China

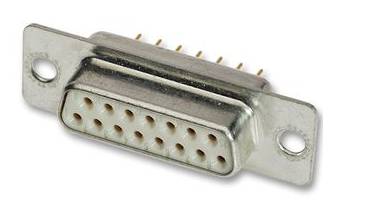

Type:9 pin,15 pin,25 pin,37 pin,50 pin
Dielectric:X7R
Temperature:-25℃~125℃
Voltage:DC100V~200V
capacity:100pF~1.5nF
Rated current：3A~5A,
Frequency range：30MHz~3GHz
Note: can be customized according the requirements of customers
Ø The Pin or hole has a C-type low-pass filter
Ø Built-in EMI filter, the effect of high frequency filtering is the most prominent
Ø Suitable for high frequency filtering of signal lines and DC power lines
Ø It is applied to common mode interference of data transmission lines such as computer serial communication ports, printer ports, microprocessor application products and peripheral terminal equipment.
| Temperature： | -25℃~+125℃ | Capacity： | 100p~1.5nF |
| Dielectric: | X7R | Dilectric temperature： | -55℃~+125℃ |
| Dielectric loss： | ≤0.025 | Precision： | ±20% |
| Rated operating voltage： | DC100V~200V | Dielectric strength： | ×2.5 （1min） |
| Insulation resistance： | Ri≥100GΩ | Rated current： | 3A~5A |
| Connection of fitlering： | C type EMI capacitor (360° grounding) | ||
| Frequency range： | 30MHz~3GHz，Effective attenuation more than 30dB |
