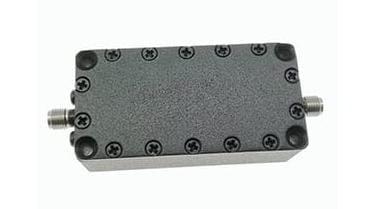

Features

• Frequency Range: 30MHz~12000MHz


• Typical 0.05dB Chebyshev response


• Sections 2~4 or more


• % 3dB Bandwidth 1% ~ 8%（or 0.2% ~ 10%）


• Maximum VSWR 1.3:1 (Typ 1.5:1)


• Specific requirements on IL, power available


• Optimized structures for custom requirement


• Good temperature characteristic


• 1.7×F parasitic passband or more

Specification

Center Frequency (Fc) 0.03~12 GHz
%3dB Bandwidth 1~8
Number of Sections 2~5
VSWR ≤1.5:1

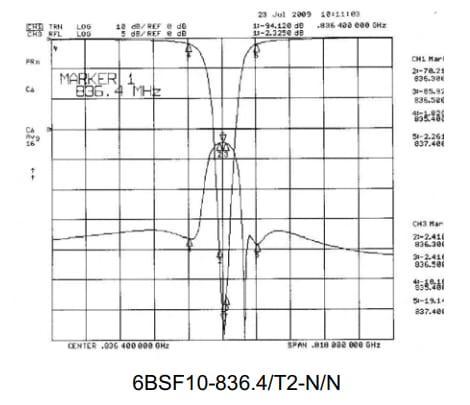

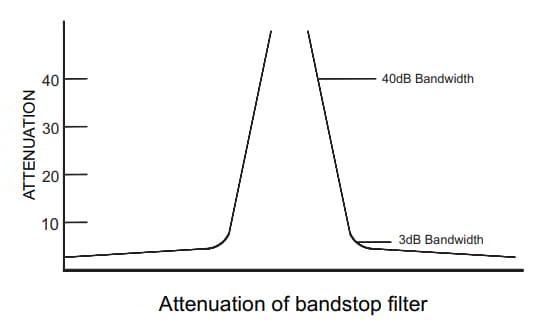

BW40dB／BW3dB 1:4 (4 sections)
IL(±20% Fc) 1dB
Stopband Attenuation 40dB (Typ.)
Power Handling (W) 10

Connector : SMA(K), SMA(J), Microstrip,N(K).
