Embedded Circulator

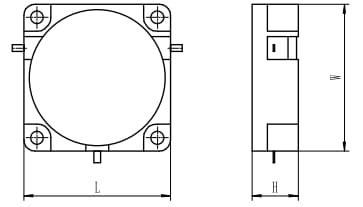

| Operating frequency (GHz) | Bandwidth (MHz) | Insertion Loss (dB) Max | Isolation (dB) Min | VSWR Max | Model series | Passing Power /Reflected Power (W) | Outline dimensions L*W*H (mm) | Operating temperature (℃) | Connection method |
| 0.3~0.8 | 100 | 0.5 | 18 | 1.3 | BKHHT161 3-** | 300 | 42*42*13 | -20-50 | strip line |
| 0.8~1.0 | 100 | 0.25 | 20 | 1.2 | BKHHT122 0-** | 100 | 25.4*25.4*8 | -55-85 | strip line |
| 1.0~1.8 | 100 | 0.2 | 20 | 1.2 | 100 | 25.4*25.4*8 | -55-85 | strip line | |
| 200 | 0.25 | 20 | 1.2 | 100 | 25.4*25.4*8 | -55-85 | strip line | ||
| 300 | 0.3 | 20 | 1.25 | 100 | 25.4*25.4*8 | -55-85 | strip line | ||
| 0.9~1.5 | 200 | 0.4 | 19 | 1.25 | BKHHT131 0-** | 100 | 25.4*25.4*8 | -55-85 | strip line |
| 300 | 0.5 | 18 | 1.3 | 100 | 25.4*25.4*8 | -55-85 | strip line | ||
| 0.985~1.135 | FULL | 0.3 | 20 | 1.2 | 100 | 25.4*25.4*8 | -55-85 | strip line | |
| 1.0~1.8 | 100 | 0.25 | 20 | 1.2 | BKHHT125 1-** | 100 | 19*19*7 | -55-85 | strip line |
| 200 | 0.3 | 20 | 1.25 | 100 | 19*19*7 | -55-85 | strip line | ||
| 1.6~3.0 | 100 | 0.2 | 20 | 1.2 | 100 | 19*197 | -55-85 | strip line | |
| 200 | 0.25 | 20 | 1.2 | 100 | 19*19*7 | -55-85 | strip line | ||
| 300 | 0.3 | 20 | 1.25 | 100 | 19*19*7 | -55-85 | strip line | ||
| 1.8~2.5 | 100 | 0.25 | 20 | 1.2 | BKHHT124 9-** | 100 | 15*15*7 | -55-85 | strip line |
| 200 | 0.3 | 20 | 1.2 | 100 | 15*15*7 | -55-85 | strip line | ||
| 1.3~3.5 | 100 | 0.2 | 20 | 1.2 | 100 | 15*15*7 | -55-85 | strip line | |
| 200 | 0.25 | 20 | 1.2 | 100 | 15*15*7 | -55-85 | strip line | ||
| Note: The above index data are typical values, and the test temperature is room temperature (25℃). | |||||||||
| Operating frequency (GHz) | Bandwidth (MHz) | Insertion Loss (dB) Max | Isolation (dB) Min | VSWR Max | Model series | Passing Power /Reflected Power (W) | Outline dimensions L*W*H (mm) | Operating temperature (℃) | Connection method |
| 1.3~3.5 | 300 | 0.3 | 20 | 1.25 | BKHHT124 9-** | 100 | 5*15*7 | -55-85 | strip line |
| 500 | 0.5 | 18 | 1.3 | 100 | 15*15*7 | -55-85 | strip line | ||
| 1.8~2.3 | 100 | 0.3 | 20 | 1.2 | BKHHT127 4-** | 30 | 12.7*12.7*6.2 | -55-85 | strip line |
| 2.3~5.0 | 100 | 0.2 | 20 | 1.2 | 30 | 12.7*12.7*6.2 | -55-85 | strip line | |
| 200 | 0.25 | 20 | 1.2 | 30 | 12.7*12.7*6.2 | -55-85 | strip line | ||
| 300 | 0.3 | 20 | 1.25 | 30 | 12.7*12.7*6.2 | -55-85 | strip line | ||
| 4.0~6.0 | 100 | 0.2 | 20 | 1.2 | BKHHT127 2-** | 30 | 9.5*11*7 | -55-85 | strip line |
| 200 | 0.25 | 20 | 1.2 | 30 | 9.5*11*7 | -55-85 | strip line | ||
| 300 | 0.3 | 20 | 1.2 | 30 | 9.5*11*7 | -55-85 | strip line | ||
| 4.0~5.0 | 300 | 0.3 | 23 | 1.15 | BKHHT130 4-** | 20 | 11*11.5*6.4 | -55-85 | strip line |
| 600 | 0.4 | 21 | 1.2 | 20 | 11*11.5*6.4 | -55-85 | strip line | ||
| 5.0~8.0 | 500 | 0.25 | 23 | 1.15 | 20 | 11*11.5*6.4 | -55-85 | strip line | |
| 1000 | 0.3 | 20 | 1.2 | 20 | 11*11.5*6.4 | -55-85 | strip line | ||
| 4.4~5.2 | 300 | 0.4 | 22 | 1.5 | BKHHT129 2-** | 15 | 10*12.5*5.4 | -40-70 | strip line |
| 5.2~5.9 | 500 | 0.3 | 22 | 1.2 | 15 | 10*12.5*5.4 | -40-70 | strip line | |
| FULL | 0.4 | 20 | 1.25 | 15 | 10*12.5*5.4 | -40-70 | strip line | ||
| 7.0~8.0 | 300 | 0.3 | 20 | 1.2 | BKHHT114 2-** | 15 | 10*14*6.4 | -40-70 | strip line |
| 500 | 0.4 | 22 | 1.25 | 15 | 10*14*6.4 | -40-70 | strip line | ||
| 8.0~11.0 | 500 | 0.3 | 22 | 1.2 | 15 | 10*14*6.4 | -40-70 | strip line | |
| 1000 | 0.4 | 20 | 1.25 | 15 | 10*14*6.4 | -40-70 | strip line | ||
| Note: The above index data are typical values, and the test temperature is room temperature (25℃). | |||||||||
